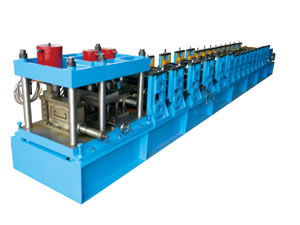

C Purling Forming Machine

Technical specifications:
Machine structure: heavy-duty stands or normal stands
Main motor power: 15kw
C Purling Roll Forming Machine Main shaft dia: ф80mm
material: 45﹟forge steel
roller material: GCR15 quenched HRC58°-62°
Roll station: 13stations plus 7 rolls leveling, 2 rolls for feeding
C Purling Roll Forming Machine Working speed: 12--15m/min (not including punching)
Transducer: Panasonic/Yaskawa
Way of control: PLC, Panasonic /Omron made in Japan
Computer operating panel: touching screen
Way of cutting; hydraulic mould cutting
Size of C Purling Roll Forming Machine: approx 11.0m×1.2m×1.0m
Changing the width and height by the spacers between the rollers

Mode of our C Purling Roll Forming Machine:

MODEL H B B C T
C80 80 40 40 15 1.5-3.0
C100 100 50 50 20 1.5-3.0
C120 120 50 50 20 1.5-3.0
C140 140 50 50 20 1.5-3.0
C160 160 60 60 20 1.5-3.0
C180 180 60 60 20 1.5-3.0
C200 200 60 60 20 1.5-3.0
C220 220 70 60 20 1.5-3.0
C250 250 70 70 20 1.5-3.0
