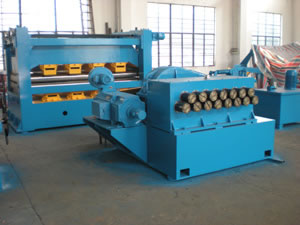

High Speed Thin Board Cut-To-Length Machine

It is one member of leveling cut-to-length line machine, which is used to cut the metal plate by decoiling, leveling, sizing and shearing into the desired length and then stacked. The two noticeable features are the high speed and thin board. It introduces 0.2mm--2mm×1300mm high speed cut-to-length machine and thin board within 0.2--3mm. This leveling cut to length line is suitable for processing cold rolled steel for galvanized steel coil.

Basic Specification of the Leveling Cut-To-Length Line:
Steel coil grade:бs≤360N/mm2,cold rolled steel or galvanized steel
Coil thickness: 0.2--3mm
Leveling Cut-To-Length Line Coil width: 300mm--1300mm
Coil outer diameter: ф1000--ф2100mm
Coil inner diameter: ф480--ф508
Cutting length: 1000mm--3000mm
Cutting length tolerance: +/-0.3mm according to the length 2000mm
Cutting diagonal tolerance: +/-0.3mm according to the length 2000mm
Leveling accuracy: ≤±1.0mm/m2
Leveling Cut-To-Length Line speed: 0--80m/min
Cutting speed: 20 pcs/min according to 5m long sheet
Whole Line weight: 50T
The dimension of the whole line: 20m × 8m × 3m (L × W × H)

Components of 0.2mm-2mm x 1300mm Leveling Cut-To-Length Line

Hydraulic coil car(15T) 1
Hydraulic coil car(15T) 1
V-shaped coil storage platform 1
Guiding and pressing and shovel head unit, 1
2 pinch rolls and first 17 leveling rolls 1
Pit(loop) 1
Sheet sides guiding organ 1
Second-time 9 rolls leveling 1 set
Shearing machine 1
Sheet dropping machine 1
Sheet pushing unit of Leveling Cut-To-Length Line 1
Hydraulic lifting& lowering Stacking table 1
Sheet unloading coil car s 2 units
Hydraulic control cabinet 1 set
Pneumatic control system 1 set
Electrical control cabinets 1 set

Flow chart of the Leveling Cut-To-Length Line:
Hydraulic coil car→hydraulic single head decoiler→guiding and pressing and shovel head unit--sides guiding organ→2 pinch rolls&17 rolls leveling machine→pit→guiding→9 rolls leveling→ shearing machine→sheet transmission table→organ, hydraulic shearing machine, sheet transmission table→sheet dropping machine→hydraulic stacker→hydraulic control  system and electrical→control cabinets.
